System configuration

● Linear actuator

Key features and benefits

Structural expansion – from “fixed space” to “variable space”

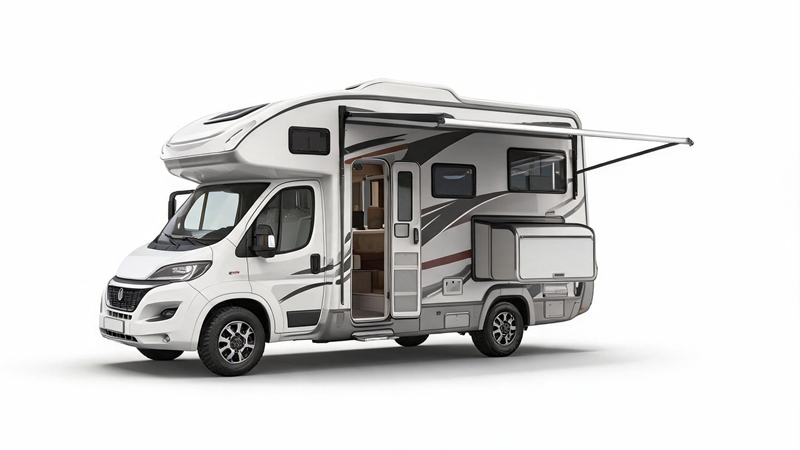

The core challenge with RV / Camper vans is limited space. Our linear actuators provide the core power for pop‑up roofs, retractable balconies, and side extension modules. Through precise, synchronized control of multiple actuators, we ensure that large structural components extend and retract smoothly without jamming. Whether it is the overall raising and lowering of a camper van’s roof system (where four actuators operate in parallel to achieve stable movement and power distribution) or the horizontal extension of a side module, our electric actuators enable RV / Camper vans to achieve “one‑touch transformation” between driving and parked modes—compact and stowed while on the road, fully extended when parked.

Outdoor expansion – fearless in harsh weather, build your home outdoors with the push of a button

Outdoor components such as rooftop tents and loading ramps are constantly exposed to sunlight, rain, wind, and sand. Our electric actuators feature a high protection rating (IP66 or higher) and are unfazed by harsh weather conditions. They operate reliably within a wide temperature range of -40°C to 80°C. Whether facing the scorching heat of deserts, the bitter cold of high‑altitude mountain regions, or the humid salt fog of coastal areas, the actuators reliably execute every deployment and retraction. RV / Camper van owners with rooftop tents can easily open or close even extremely heavy tents and luggage with just a remote control.

Interior upgrades – from “manual adjustment” to “one‑touch comfort”

The interior of an RV / Camper van is where users spend the most time, and the level of automation directly determines the quality of their travel experience. Our electric actuators, designed to meet low‑noise and long‑life standards, comprehensively enhance the overall quality and luxury of the vehicle’s interior. Whether raising or lowering beds, folding tables, opening or closing storage compartments, or adjusting seats, everything can be accomplished with a single button press. The pull‑down smart bed is guided by sturdy lifting columns and can be raised or lowered using either a handheld controller or a remote control as needed; the actuators move the bed gently, quietly, and precisely.

Automated shading – from “passive shading” to “smart light‑sensitive”

The RV / Camper van shading system, driven by electric actuators, achieves high‑precision stroke control and fine‑tuned angle adjustments. The system can integrate algorithms for light, temperature, and wind detection, automatically deploying or retracting the awnings based on environmental conditions. Preset “Driving Mode” (one‑touch retraction to home position), “Parking Mode” (dynamic adjustment based on light conditions), and “Night Mode” (full coverage for privacy protection) create an automated travel experience that “moves with the light.”

Heavy‑duty component drive – reliable support for every opening and closing

Heavy‑duty components such as tailgates and garage doors on large RV / Camper vans can be quite substantial. The extra‑heavy garage doors on luxury travel vehicles are equipped with powerful and reliable electric linear actuators for opening and closing. One actuator is installed on each side panel, and their synchronized movement prevents the tailgate from warping during operation. The actuators are also used to seal and secure the tailgate. Even when subjected to intense vibrations, these electric linear actuators must continue to operate reliably for many years.

Synchronized control of multiple linear actuators – ensuring smooth operation of large structural components

Applications in RV / Camper vans—such as pop‑up roofs, side extensions, and tailgate operation—often require multiple linear actuators to work in coordination. Our linear actuators support precise synchronized control, ensuring consistent movement and even force distribution across all actuators. Synchronization is not merely a matter of “moving together”; rather, it involves sharing control signals, equidistant installation, and coaxial load distribution to form a controllable two‑dimensional translational platform. Users will notice in practical use that the bed no longer tilts when raised, and the tabletop no longer ends up “one end higher than the other” when leveled.

Low‑power operation, compatible with on‑board power systems

RV / Camper van systems are typically powered by on‑board batteries or solar panels, which impose strict energy consumption requirements. Our electric actuators feature extremely low standby power consumption (less than 0.1 W) and significantly reduced operating power consumption compared to traditional solutions. They are compatible with vehicle batteries and solar power, effectively extending the range of recreational vehicles. The actuators consume power only during instantaneous movements, emit no oil or exhaust fumes, and embody a green, low‑carbon travel philosophy.

Built‑in Hall sensors enable precise control for customers

Our actuators feature built‑in Hall sensors that provide real‑time feedback on stroke position and operational status via pulse signals. Based on this data, the customer’s vehicle control system can precisely track the real‑time position of every moving component, enabling accurate closed‑loop control and fault early warning. The real‑time feedback from the Hall sensors provides an accurate positional reference for synchronized control of multiple actuators—from confirming the height of a raised roof to detecting the proper positioning of an extension module, every step is executed with precision under closed‑loop control.

Richmat’s engineers provide end‑to‑end technical support—from needs assessment and solution design to product delivery—ensuring that every movement and every moment of comfort at home is safeguarded by our reliable linear drive systems.
